Geo Knight 16"x20" (DK20A) AUTO Clamshell Heat Press

Geo Knight IncSKU: DK20A

Size: 16" x 20" Auto Clamshell
Sale price$ 1,595.00 Regular price$ 1,650.00


This item qualifies for FREE SHIPPING!


The DK20A IS THE AUTO-RELEASE Pop-Up version of the DK20.  The auto release feature allows the press to pop up automatically at the end of the digital time cycle.  This machine also features the "HOVER" feature.  This allowers the user to lower the handle without fully clamping which can be useful in curing purposes.  The press then will release automatically as usual after the timing cycle.

This heat press allows users to load garments from the front or rear of the heat platen due to the upper table raising above and away from the lower platen.  The frame has a narrow base which allows full drape space underneath the loading area.  Ideal for shops with limited space or users who need maximum portability.

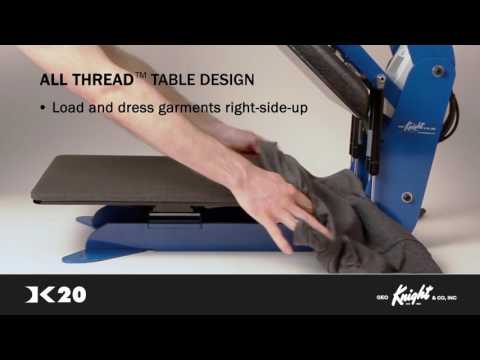

  • All-Thread table loading design
  • Auto-Release POP-UP automatic open at end of time cycle
  • Auto-Release "Hover" position cures materials without pressing
  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Digital Pressure Bar Graph
  • Super-portable light machine weight - 103 lbs !
  • Extreme high pressure capability
  • Hardened high-strength pivot points
  • Interchangeable tables
  • Solid Steel framework
  • SuperCoil-Microwinding™ heater technology
  • Self lifting gas-spring, & wide opening
  • Temperature readout accuracy +-2°F - can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon-coated 3/4" thick heat platen


  • FREE LIFETIME Tech Support!
  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts


  • Weight: 103 Lbs
  • Electrical: 1800W / 15A / 110V
  • Shipping Dims: 36"L x 17"W x 16"H
